Understanding the vacuum solenoid valve function is crucial in various industrial applications. Whether you're an engineer, technician, or hobbyist, this component plays a vital role in controlling fluid flow in automated systems. This article aims to provide an in-depth exploration of vacuum solenoid valves, their functions, types, and applications.

Vacuum solenoid valves are essential components in pneumatic and hydraulic systems. They are designed to regulate the flow of gases or liquids under vacuum conditions, ensuring precise control and efficiency. As industries continue to evolve, the demand for reliable and efficient vacuum solenoid valves is on the rise.

In this article, we will delve into the intricacies of vacuum solenoid valve function, covering everything from basic principles to advanced applications. Whether you're looking to deepen your understanding or seeking solutions for specific industrial challenges, this guide will serve as a valuable resource.

Introduction to Solenoid Valves

Solenoid valves are electromechanical devices used to control the flow of fluids or gases. They operate by converting electrical energy into mechanical motion, enabling precise control over fluid flow. Solenoid valves are widely used in various industries, including automotive, manufacturing, and HVAC systems.

Among the different types of solenoid valves, vacuum solenoid valves stand out due to their ability to function effectively under vacuum conditions. These valves are specifically designed to handle low-pressure environments, making them ideal for applications where traditional valves may not perform optimally.

Understanding the basics of solenoid valves is essential before diving into the specifics of vacuum solenoid valves. This foundational knowledge will help you appreciate the complexities and nuances of vacuum solenoid valve function.

What is a Vacuum Solenoid Valve?

A vacuum solenoid valve is a specialized type of solenoid valve designed to operate in vacuum environments. It is used to control the flow of fluids or gases under vacuum conditions, ensuring reliable performance in low-pressure systems.

These valves are commonly used in industries such as semiconductor manufacturing, vacuum packaging, and laboratory equipment. Their ability to maintain a tight seal and provide precise control makes them indispensable in applications where vacuum integrity is critical.

Key features of vacuum solenoid valves include their robust construction, resistance to corrosion, and compatibility with a wide range of media. These attributes make them suitable for use in demanding industrial environments.

Working Principle of Vacuum Solenoid Valves

The working principle of a vacuum solenoid valve is based on electromagnetic actuation. When an electrical current is applied to the solenoid coil, it generates a magnetic field that moves the valve's plunger. This movement opens or closes the valve, allowing or preventing fluid flow.

In vacuum conditions, the valve must maintain a tight seal to prevent air ingress, which could disrupt the vacuum environment. The design of the valve ensures that it can withstand the unique challenges posed by low-pressure environments, such as maintaining a secure seal and preventing leaks.

• The solenoid coil generates a magnetic field when energized.
• The magnetic field moves the plunger, opening or closing the valve.
• A spring returns the plunger to its original position when the current is removed.

Types of Vacuum Solenoid Valves

Direct Acting Valves

Direct acting vacuum solenoid valves use the magnetic force generated by the solenoid coil to directly move the plunger. These valves are simple in design and offer fast response times, making them suitable for applications requiring rapid on/off control.

Key characteristics of direct acting valves include:

• Compact design
• Fast actuation
• Reliable performance in low-pressure environments

Pilot Operated Valves

Pilot operated vacuum solenoid valves use a combination of electromagnetic and fluid pressure to control the valve's operation. These valves are typically used in applications requiring higher flow rates or larger valve sizes.

Advantages of pilot operated valves include:

• Higher flow capacity
• Lower power consumption
• Cost-effective for large-scale applications

Key Components of Vacuum Solenoid Valves

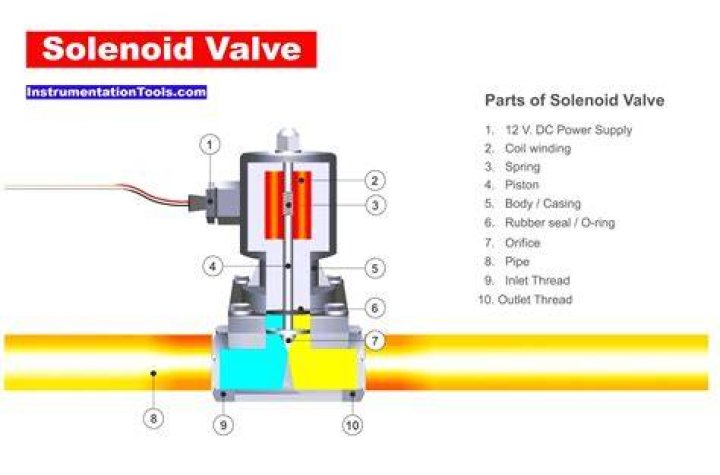

Vacuum solenoid valves consist of several key components that work together to ensure reliable operation. Understanding these components is essential for selecting the right valve for your application.

• Solenoid Coil: Generates the magnetic field that actuates the valve.
• Plunger: Moves to open or close the valve orifice.
• Valve Body: Houses the internal components and provides a flow path for the media.
• Seal: Prevents leaks and ensures vacuum integrity.
• Spring: Returns the plunger to its original position when the solenoid is de-energized.

Applications of Vacuum Solenoid Valves

Vacuum solenoid valves find applications in a wide range of industries, including:

• Semiconductor Manufacturing: Used in vacuum chambers for wafer processing.
• Food Packaging: Employed in vacuum sealing machines to preserve food quality.
• Medical Devices: Utilized in vacuum-assisted systems for medical procedures.
• Automotive Industry: Used in braking systems and engine vacuum control.

These valves are chosen for their ability to provide precise control and maintain vacuum conditions in challenging environments.

Benefits of Using Vacuum Solenoid Valves

Using vacuum solenoid valves offers several advantages, including:

• Precision Control: Ensures accurate regulation of fluid or gas flow.
• Reliability: Designed to withstand harsh conditions and provide long-lasting performance.
• Energy Efficiency: Consumes minimal power, reducing operational costs.
• Versatility: Compatible with a wide range of media and operating conditions.

These benefits make vacuum solenoid valves an attractive choice for industries requiring high-performance fluid control solutions.

Selection Criteria for Vacuum Solenoid Valves

When selecting a vacuum solenoid valve, consider the following factors:

• Operating Pressure: Ensure the valve can handle the required vacuum level.
• Media Compatibility: Choose a valve that is compatible with the fluid or gas being controlled.
• Flow Rate: Select a valve with sufficient capacity for your application.
• Material Construction: Opt for durable materials that resist corrosion and wear.

Consulting with experts or manufacturers can help you make an informed decision based on your specific needs.

Common Issues and Troubleshooting

While vacuum solenoid valves are reliable, they may encounter issues such as leaks, slow response, or failure to open/close. Common causes of these problems include:

• Worn seals
• Contaminated media
• Electrical faults

Regular maintenance and inspection can help prevent these issues, ensuring optimal performance and longevity of the valve.

Future Trends in Vacuum Solenoid Valve Technology

The future of vacuum solenoid valve technology is promising, with advancements in materials, design, and manufacturing processes. Innovations such as smart valves with integrated sensors and IoT capabilities are expected to enhance performance and efficiency.

Additionally, the growing demand for energy-efficient solutions will drive the development of valves with lower power consumption and improved durability. As industries continue to evolve, vacuum solenoid valves will remain a critical component in fluid control systems.

Conclusion

Vacuum solenoid valves play a vital role in controlling fluid flow under vacuum conditions. Their ability to provide precise control and maintain vacuum integrity makes them indispensable in various industrial applications. By understanding the working principle, types, and selection criteria of vacuum solenoid valves, you can make informed decisions to meet your specific needs.

We encourage you to leave your thoughts and questions in the comments section below. Share this article with colleagues or friends who may benefit from it, and explore other resources on our site to deepen your knowledge of fluid control systems.
