Testing whether a cable is live is an essential skill for anyone working with electrical systems or conducting DIY projects at home. It ensures safety and prevents accidents that could lead to serious injuries or fatalities. Whether you're a professional electrician or a homeowner, understanding the process of testing live cables can save lives and protect property.

Electricity powers our daily lives, but it also poses significant risks if mishandled. A live cable carries electrical current that can cause severe burns, electric shocks, or even death. Therefore, knowing how to test if a cable is live is critical for anyone who works with electrical systems. This guide will walk you through the process step by step, ensuring you understand the tools, techniques, and safety measures required.

As you explore this article, you'll discover the importance of testing live cables, the tools needed for the job, and the best practices to follow. By the end, you'll be equipped with the knowledge and confidence to handle electrical cables safely and efficiently.

Why Test If a Cable Is Live?

Testing if a cable is live is not just a precautionary measure; it's a necessity. Electrical accidents are one of the leading causes of workplace injuries and fatalities. According to the Occupational Safety and Health Administration (OSHA), electrical hazards cause over 300 deaths and 4,000 injuries annually in the United States alone. By testing cables before working on them, you can significantly reduce the risk of electric shock and other related accidents.

Moreover, testing live cables helps in identifying potential faults or issues in the electrical system. It allows you to pinpoint the source of the problem, ensuring that repairs or maintenance are carried out effectively. This proactive approach not only enhances safety but also prolongs the lifespan of electrical equipment.

Tools You Need to Test Live Cables

To test whether a cable is live, you'll need the right tools. These tools are designed to detect electrical currents safely and accurately. Below is a list of essential tools:

• Non-Contact Voltage Tester: A handheld device that detects voltage without making physical contact with the wire.
• Multimeter: A versatile tool used to measure voltage, current, and resistance. It's indispensable for detailed electrical testing.
• Voltage Detector Pen: A compact and easy-to-use tool that lights up when it detects voltage in a cable.
• Gloves and Safety Gear: Always wear insulated gloves and other protective equipment when handling electrical components.

Additional Tools for Advanced Testing

In addition to the basic tools, you might need more advanced equipment depending on the complexity of the task. These include:

• Clamp Meter: Measures current without breaking the circuit, making it ideal for live testing.
• Continuity Tester: Checks if there is a complete electrical path in a circuit.

Safety Precautions Before Testing

Safety should always be your top priority when working with electricity. Here are some critical safety precautions to follow before testing live cables:

First, ensure you are wearing the appropriate personal protective equipment (PPE), including insulated gloves, safety goggles, and non-conductive footwear. Additionally, make sure the area is clear of water and other conductive materials that could increase the risk of electric shock.

It's also important to familiarize yourself with the tools you'll be using. Read the manufacturer's instructions carefully and practice using the tools in a safe environment before attempting to test live cables.

Testing Methods for Live Cables

There are several methods you can use to test if a cable is live. Each method has its own advantages and is suited to different situations. Below are some of the most commonly used methods:

Non-Contact Testing

Non-contact testing is one of the safest and easiest methods for detecting live cables. As the name suggests, this method does not require physical contact with the wire. Instead, it uses sensors to detect the presence of electrical fields around the cable.

Contact Testing

Contact testing involves making direct contact with the cable using a multimeter or continuity tester. While this method provides more accurate results, it requires extra caution to avoid electric shock.

Using Non-Contact Testers

Non-contact testers are handheld devices that beep or light up when they detect voltage in a cable. They are easy to use and require no physical contact with the wire. Here's how to use a non-contact tester:

1. Turn on the tester and set it to the appropriate voltage range.
2. Hold the tester near the cable you want to test.
3. Observe the readings. If the tester beeps or lights up, the cable is live.

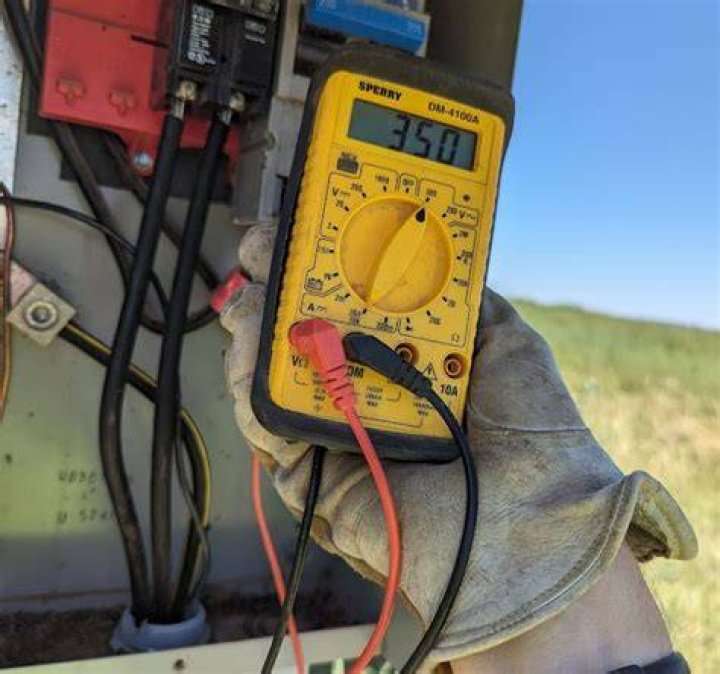

Testing with a Multimeter

A multimeter is a versatile tool that can measure voltage, current, and resistance. To test if a cable is live using a multimeter:

1. Set the multimeter to the voltage setting.
2. Touch the probes to the terminals of the cable.
3. Read the display. If it shows a voltage reading, the cable is live.

Remember to use insulated probes and wear protective gear while using a multimeter.

Using Voltage Detector Pens

Voltage detector pens are compact and easy-to-use tools that light up when they detect voltage in a cable. They are ideal for quick checks and are widely used in residential and commercial settings. To use a voltage detector pen:

1. Turn on the pen and hold it near the cable.
2. Observe the light. If it glows, the cable is live.

Common Mistakes to Avoid

Even experienced professionals can make mistakes when testing live cables. Here are some common errors to avoid:

• Not Wearing Protective Gear: Always wear insulated gloves and other PPE when handling electrical components.
• Using Damaged Tools: Inspect your tools for damage before use. Damaged tools can lead to inaccurate readings or accidents.
• Ignoring Safety Precautions: Follow all safety guidelines and never take shortcuts when working with electricity.

Troubleshooting Tips for Testing Live Cables

Even with the right tools and precautions, you might encounter issues while testing live cables. Here are some troubleshooting tips to help you overcome common problems:

• Inaccurate Readings: Ensure the tester is calibrated correctly and the cable is not shielded or insulated.
• No Readings: Check the batteries of your tester or ensure the cable is properly connected.

Conclusion and Call to Action

Testing if a cable is live is a crucial step in ensuring safety and preventing electrical accidents. By following the guidelines and using the right tools, you can perform this task confidently and effectively. Remember, safety should always come first when working with electricity.

We encourage you to share this article with others who might benefit from the information. Feel free to leave a comment below if you have any questions or additional tips to share. For more informative articles on electrical safety and DIY projects, explore our website further.

Stay safe, and happy testing!
