Choosing the right valve for your plumbing or industrial application can significantly impact system efficiency and cost-effectiveness. Among the most commonly used valves are gate valves and ball valves. While both serve the purpose of controlling fluid flow, they differ significantly in design, functionality, and application. Understanding these differences is crucial for making informed decisions.

Whether you're a professional plumber, an engineer, or someone working on a DIY project, knowing the distinctions between gate vs ball valve can help you choose the best solution for your needs. This article will delve into the characteristics, advantages, and disadvantages of each type of valve, ensuring you have all the necessary information to make the right choice.

By the end of this guide, you'll not only understand the technical aspects of gate valves and ball valves but also gain insights into their real-world applications, maintenance requirements, and cost considerations. Let's dive in!

Introduction to Gate and Ball Valves

Gate valves and ball valves are two of the most widely used types of valves in various industries. Both are essential components in systems that require precise control of fluid flow. However, their mechanisms and applications vary significantly.

A gate valve operates by raising or lowering a gate to allow or block fluid flow. It is typically used in applications where a straight-line flow of fluid and minimal flow restriction are required. On the other hand, a ball valve uses a hollow, perforated ball to control flow. When the ball's hole is in line with the flow, the valve is open; when rotated 90 degrees, it shuts off the flow.

Understanding the basics of gate vs ball valve is the first step in determining which type is best suited for your specific needs.

Design Differences Between Gate vs Ball Valve

Gate Valve Design

Gate valves are designed with a disc-like gate that moves perpendicular to the flow of fluid. This design allows for a more gradual opening and closing process, which is ideal for applications where sudden changes in flow could cause damage to the system.

Key features of gate valve design include:

• A wedge-shaped disc that controls flow.
• A stem that connects the handwheel to the gate, allowing manual operation.
• Minimal pressure drop when fully open.

Ball Valve Design

Ball valves, as the name suggests, feature a spherical disc with a hole through the center. This design allows for quick and efficient shut-off capabilities, making them ideal for applications requiring rapid flow control.

Key features of ball valve design include:

• A quarter-turn operation for fast opening and closing.
• A compact and lightweight structure.
• High-pressure sealing capabilities.

Applications of Gate and Ball Valves

The choice between gate vs ball valve often depends on the specific application. Here's a closer look at where each type of valve excels:

Gate Valve Applications

Gate valves are commonly used in applications requiring full-on or full-off flow control. They are ideal for:

• Pipelines in water supply systems.
• Oil and gas pipelines where minimal flow resistance is crucial.
• Industrial processes that demand precise flow regulation.

Ball Valve Applications

Ball valves are preferred in situations where quick shut-off and high-pressure resistance are necessary. They are suitable for:

• Compressed air systems.
• Chemical processing plants.
• Oil and gas extraction and transportation.

Performance Metrics: Gate vs Ball Valve

When comparing gate vs ball valve, performance metrics such as flow rate, pressure rating, and durability are critical factors to consider.

Flow Rate

Gate valves generally offer a higher flow rate due to their design, which allows for a straight-through flow path. Ball valves, while slightly more restrictive, still provide excellent flow characteristics, especially in smaller diameters.

Pressure Rating

Ball valves are known for their superior pressure handling capabilities, making them ideal for high-pressure applications. Gate valves, while capable of handling moderate pressures, are not as robust in this regard.

Durability

Both types of valves are durable, but ball valves tend to have a longer lifespan in corrosive environments due to their compact design and fewer moving parts.

Maintenance Requirements

Maintenance is a critical aspect of valve longevity. Understanding the maintenance requirements of gate vs ball valve can help extend their operational life.

Gate Valve Maintenance

Gate valves require regular inspection and lubrication of the stem to prevent corrosion and ensure smooth operation. They may also need occasional disc replacement if wear and tear occur.

Ball Valve Maintenance

Ball valves require less maintenance due to their simpler design. However, periodic checks for leaks and seat wear are necessary to ensure optimal performance.

Cost Considerations

The cost of gate vs ball valve can vary based on size, material, and application. Generally, ball valves are more cost-effective for smaller applications, while gate valves may be more economical for larger systems.

Initial Cost

Ball valves typically have a lower initial cost compared to gate valves, especially in smaller sizes. However, for larger diameters, gate valves may offer better value.

Long-Term Cost

Considering maintenance and replacement costs, ball valves often prove to be more cost-effective in the long run due to their durability and lower maintenance requirements.

Advantages of Gate and Ball Valves

Both gate and ball valves offer unique advantages that make them suitable for different applications.

Advantages of Gate Valves

• Minimal flow restriction when fully open.
• Suitable for large-diameter pipelines.
• Effective for full-on or full-off applications.

Advantages of Ball Valves

• Quick and reliable shut-off capabilities.
• Compact and lightweight design.
• Excellent pressure and temperature resistance.

Disadvantages of Gate and Ball Valves

Despite their advantages, both types of valves have certain limitations that should be considered.

Disadvantages of Gate Valves

• Slower operation compared to ball valves.
• Prone to corrosion if not properly maintained.
• Less effective in throttling applications.

Disadvantages of Ball Valves

• Higher cost for larger sizes compared to gate valves.
• May experience seat wear over time in high-cycle applications.
• Not ideal for applications requiring precise flow control.

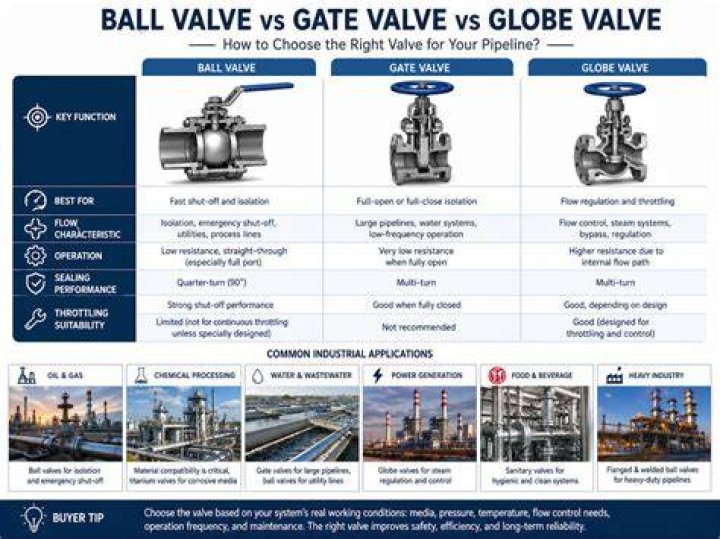

Gate vs Ball Valve: A Detailed Comparison

To summarize the key differences between gate vs ball valve, consider the following table:

Conclusion and Final Thoughts

In conclusion, the decision between gate vs ball valve depends on the specific requirements of your application. Gate valves are ideal for applications requiring minimal flow restriction and precise flow control, while ball valves excel in situations demanding quick shut-off and high-pressure resistance.

We encourage you to share your thoughts and experiences with these valves in the comments section below. Additionally, feel free to explore our other articles for more insights into plumbing and industrial solutions. Together, let's build a community of informed and knowledgeable professionals!

References:

• ASME B16.34: Valve Standards
• API 6D: Pipeline Valves
• ISO 10434: Industrial valves
