Choosing the right valve for your plumbing or industrial needs can be a challenging task, especially when you're comparing gate valves and ball valves. Both types of valves have their unique advantages and disadvantages, and understanding them is crucial for making an informed decision. In this article, we will delve into the gate valve vs ball valve debate, highlighting their characteristics, uses, and performance to help you determine which one suits your needs best.

Valves are essential components in any system that involves fluid control, whether it’s water supply, oil pipelines, or gas distribution. However, not all valves are created equal, and selecting the wrong one can lead to inefficiencies, increased maintenance costs, or even safety hazards. Therefore, understanding the differences between gate valves and ball valves is not only important but also necessary for long-term success.

This article aims to provide you with a comprehensive comparison of gate valves and ball valves, covering their pros and cons, applications, and maintenance requirements. By the end, you’ll have a clearer understanding of which valve type is best suited for your specific situation.

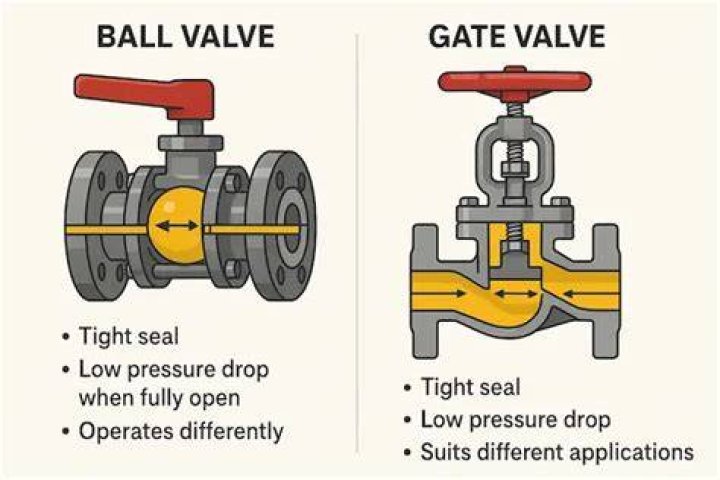

Introduction to Gate and Ball Valves

Understanding the Basics

Before diving into the detailed comparison, it’s essential to understand what gate and ball valves are. Gate valves are designed for on/off service, meaning they are used to start or stop fluid flow entirely. On the other hand, ball valves are known for their quick quarter-turn operation and are often used in systems requiring frequent opening and closing.

Both valves serve the same fundamental purpose of controlling fluid flow, but their design and operational characteristics differ significantly. Understanding these differences is key to selecting the appropriate valve for your application.

What is a Gate Valve?

A gate valve, also known as a sluice valve, is a linear motion valve that uses a gate or wedge to control flow. It operates by raising or lowering the gate perpendicular to the flow of the fluid. Gate valves are primarily used in applications where minimal pressure drop and unrestricted flow are required.

Key Features of Gate Valves

• Designed for full-open or full-closed positions.
• Provides unrestricted flow when fully open.
• Suitable for larger pipe sizes.
• Can handle a wide range of fluids, including water, oil, and gas.

What is a Ball Valve?

A ball valve uses a hollow, perforated, and rotating ball to control flow through it. It is a quarter-turn rotary mechanical motion valve that is highly reliable and provides excellent shutoff capabilities. Ball valves are known for their durability and are often used in systems where frequent operation is required.

Key Features of Ball Valves

• Quick and easy operation with a quarter-turn mechanism.
• Provides a tight seal and minimal leakage.
• Suitable for both low and high-pressure applications.
• Available in a variety of materials, including stainless steel and brass.

Pros and Cons of Gate and Ball Valves

Understanding the advantages and disadvantages of both gate and ball valves is crucial for making an informed decision. Below is a detailed breakdown of their pros and cons:

Pros of Gate Valves

• Provides unrestricted flow when fully open.
• Suitable for larger pipe sizes.
• Can handle a wide range of fluids and pressures.

Cons of Gate Valves

• Slower operation compared to ball valves.
• Prone to wear and tear over time, leading to potential leaks.
• Not ideal for frequent opening and closing.

Pros of Ball Valves

• Quick and easy operation with a quarter-turn mechanism.
• Provides a tight seal and minimal leakage.
• Durable and reliable, even under high-pressure conditions.

Cons of Ball Valves

• More expensive than gate valves, especially in larger sizes.
• May require regular maintenance to ensure proper sealing.
• Not suitable for throttling applications.

Applications of Gate and Ball Valves

The choice between gate and ball valves often depends on the specific application. Here’s a breakdown of their typical uses:

Applications of Gate Valves

• Water supply systems.
• Oil and gas pipelines.
• Industrial processes requiring unrestricted flow.

Applications of Ball Valves

• Residential plumbing systems.
• Chemical and petrochemical industries.
• Systems requiring frequent operation and tight sealing.

Performance Comparison

When comparing the performance of gate and ball valves, several factors come into play, including flow characteristics, pressure handling, and durability.

Flow Characteristics

Gate valves provide unrestricted flow when fully open, making them ideal for systems where minimal pressure drop is required. Ball valves, on the other hand, offer excellent shutoff capabilities but are not suitable for throttling applications.

Pressure Handling

Both gate and ball valves can handle a wide range of pressures, but ball valves are often preferred in high-pressure applications due to their robust design and tight sealing capabilities.

Durability

Ball valves are generally more durable than gate valves, especially in systems requiring frequent operation. However, gate valves are more cost-effective for larger pipe sizes and are often used in industrial applications.

Maintenance Requirements

Maintenance is a critical factor to consider when choosing between gate and ball valves. While both types of valves require regular maintenance, the frequency and complexity of maintenance tasks can vary.

Maintenance of Gate Valves

• Regular inspection for wear and tear.
• Lubrication of moving parts to ensure smooth operation.
• Replacement of seals and gaskets as needed.

Maintenance of Ball Valves

• Regular inspection of the ball and seat for wear.
• Lubrication of the ball and stem to ensure proper sealing.
• Replacement of seals and O-rings as needed.

Cost Considerations

Cost is another important factor to consider when choosing between gate and ball valves. Generally, gate valves are more cost-effective, especially in larger sizes. However, ball valves offer better performance and durability, which can lead to cost savings in the long run.

Long-Term Durability

The long-term durability of gate and ball valves depends on several factors, including material quality, operating conditions, and maintenance practices. While both types of valves can last for many years, ball valves are often preferred for their reliability and resistance to wear and tear.

Conclusion and Recommendations

In conclusion, the choice between gate and ball valves ultimately depends on your specific needs and application. Gate valves are ideal for systems requiring unrestricted flow and are more cost-effective for larger pipe sizes. Ball valves, on the other hand, offer quick operation, tight sealing, and excellent durability, making them suitable for high-pressure and frequent operation applications.

We encourage you to leave a comment or share this article if you found it helpful. For more insights on plumbing and industrial systems, explore our other articles and resources.

References:

• ASME Boiler and Pressure Vessel Code
• API Standard 600 for Gate Valves
• API Standard 6D for Ball Valves
