When it comes to choosing the right valve for industrial applications, understanding the differences between gate valve and ball valve is crucial. Both types of valves serve the purpose of controlling fluid flow but come with distinct characteristics, advantages, and disadvantages. In this article, we will delve into a detailed comparison of gate valve vs ball valve to help you make an informed decision based on your specific needs.

The choice between gate valve and ball valve often depends on factors such as pressure, temperature, flow rate, and the type of fluid being handled. Each valve has its own unique design and operational mechanism, making them suitable for different scenarios. Whether you're working on plumbing systems, oil and gas pipelines, or water treatment plants, selecting the appropriate valve is essential for optimal performance and efficiency.

As we explore the intricacies of gate valve vs ball valve, we will provide you with valuable insights and practical knowledge. This article aims to simplify the decision-making process by highlighting the key differences, benefits, and limitations of each valve type. So, let's dive in and uncover the secrets behind these essential components of fluid control systems.

Introduction to Gate Valve and Ball Valve

Gate valves and ball valves are two of the most commonly used types of valves in industrial applications. They are designed to control the flow of fluids in pipelines, but their mechanisms and purposes differ significantly. A gate valve operates by raising or lowering a gate-like disc to allow or block fluid flow, while a ball valve uses a rotating ball with a bore to control the flow. Understanding the basics of each valve type is essential for selecting the right one for your application.

History of Valves

The history of valves dates back centuries, with early versions used in ancient civilizations for irrigation and water management. Over time, advancements in engineering and materials science have led to the development of modern gate and ball valves. These valves are now indispensable in industries ranging from construction and manufacturing to energy production and water treatment.

Importance in Modern Industries

In today's industrial landscape, valves play a critical role in ensuring safe and efficient fluid control. Gate valves are often preferred for applications requiring full open or closed positions, such as in water supply systems. On the other hand, ball valves excel in situations where quick shut-off and reliable sealing are necessary, such as in gas pipelines. Both valves contribute to the smooth operation of various systems, making them vital components in modern infrastructure.

Design and Structure

The design and structure of gate and ball valves are tailored to their specific functions. Understanding these differences can help you appreciate their unique capabilities and limitations.

Gate Valve Design

A gate valve consists of a body, bonnet, stem, gate, and seat. The gate is the key component that controls the flow by moving up or down within the valve body. This design allows for minimal resistance when fully open, making gate valves ideal for applications where unrestricted flow is desired.

Ball Valve Design

A ball valve, on the other hand, features a spherical ball with a hole (bore) that aligns with the flow path when the valve is open. Rotating the ball 90 degrees closes the valve, effectively blocking the flow. This simple yet effective design makes ball valves suitable for quick shut-off applications.

Functionality and Operation

The functionality of gate and ball valves is determined by their operational mechanisms. While both types serve the same basic purpose of controlling fluid flow, their methods of operation differ significantly.

How Gate Valves Work

Gate valves operate through a linear motion that moves the gate perpendicular to the flow path. When the gate is raised, the valve opens, allowing fluid to pass through. Conversely, lowering the gate closes the valve, stopping the flow. This mechanism makes gate valves suitable for applications requiring minimal turbulence and pressure drop.

How Ball Valves Work

Ball valves function through a rotational motion that aligns or blocks the bore in the ball with the flow path. A quarter-turn rotation of the handle or actuator fully opens or closes the valve. This rapid operation makes ball valves ideal for scenarios where quick shut-off is necessary.

Applications in Various Industries

Gate and ball valves find applications across a wide range of industries, each suited to specific requirements. Understanding their typical uses can help you determine which valve is best for your needs.

Industrial Applications

• Oil and gas industry: Both gate and ball valves are extensively used in pipelines for controlling the flow of oil and natural gas.
• Water treatment plants: Gate valves are commonly employed in large water supply systems, while ball valves are preferred for smaller pipelines requiring quick shut-off.
• Chemical processing: Ball valves are favored for their ability to handle corrosive fluids and provide reliable sealing.

Residential and Commercial Uses

In residential and commercial settings, ball valves are often used for plumbing systems due to their durability and ease of operation. Gate valves, on the other hand, are used in situations where a steady flow of water is required, such as in fire protection systems.

Advantages of Gate Valve and Ball Valve

Both gate and ball valves offer distinct advantages that make them suitable for various applications. Recognizing these benefits can help you choose the right valve for your specific needs.

Advantages of Gate Valves

• Minimal pressure drop when fully open.
• Capable of handling larger pipe sizes.
• Provides a straight-through flow path, reducing turbulence.

Advantages of Ball Valves

• Rapid operation with a quarter-turn motion.
• Excellent sealing capability, even after prolonged periods of non-use.
• Compact design, making them suitable for space-constrained applications.

Disadvantages and Limitations

Despite their many advantages, gate and ball valves also have certain limitations that should be considered before making a selection.

Disadvantages of Gate Valves

• Slower operation compared to ball valves.
• Prone to wear and tear over time, especially in applications involving frequent opening and closing.
• Not suitable for throttling applications due to potential damage to the gate.

Disadvantages of Ball Valves

• Higher initial cost compared to gate valves.
• May experience seating issues if used for throttling purposes.
• Can be more challenging to repair or maintain in certain configurations.

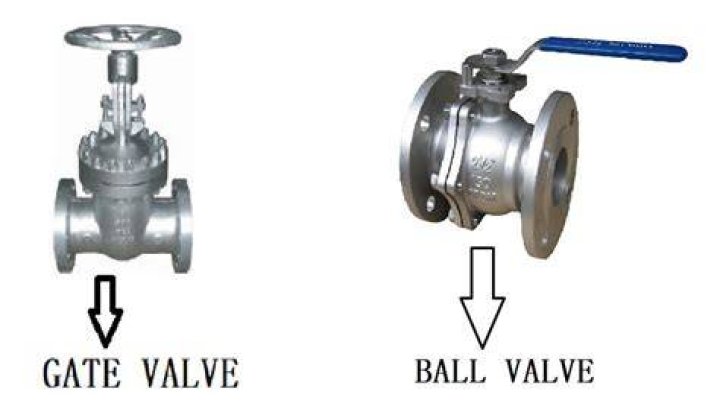

Gate Valve vs Ball Valve: A Detailed Comparison

A detailed comparison of gate valve vs ball valve reveals the strengths and weaknesses of each type. Below is a summary of key factors to consider:

Flow Characteristics

Gate valves offer minimal resistance to fluid flow when fully open, making them ideal for applications requiring unrestricted flow. Ball valves, while slightly more restrictive, provide excellent sealing and are better suited for situations where precise control is needed.

Pressure and Temperature Ratings

Both gate and ball valves are available in a wide range of pressure and temperature ratings, catering to various industrial requirements. However, ball valves generally perform better in high-pressure and high-temperature applications due to their robust design.

Maintenance Requirements

Gate valves may require more frequent maintenance due to their susceptibility to wear and tear. Ball valves, with their simpler design, tend to have longer service lives and require less upkeep.

Maintenance and Care

Proper maintenance is crucial for ensuring the longevity and reliability of both gate and ball valves. Regular inspections, lubrication, and cleaning can prevent issues such as leaks and corrosion.

Inspection Tips

Regularly inspect valves for signs of wear, such as leaks around the stem or body. Ensure that all components are functioning correctly and replace any damaged parts promptly.

Cleaning and Lubrication

Clean valves periodically to remove debris and prevent buildup that could affect performance. Apply appropriate lubricants to moving parts to ensure smooth operation and reduce friction.

Cost Analysis and Economic Considerations

When evaluating gate valve vs ball valve, cost is an important factor to consider. While ball valves may have a higher upfront cost, their durability and lower maintenance requirements can result in long-term savings. Conversely, gate valves may offer a more affordable initial investment but could incur higher maintenance expenses over time.

Conclusion and Final Thoughts

In conclusion, the choice between gate valve and ball valve depends on the specific requirements of your application. Gate valves excel in situations where steady, unrestricted flow is needed, while ball valves shine in scenarios requiring quick shut-off and reliable sealing. By understanding the differences and considering factors such as pressure, temperature, and maintenance needs, you can make an informed decision that ensures optimal performance and efficiency.
