Valves play a crucial role in controlling the flow of fluids in various industries, and understanding the difference between ball valve and gate valve is essential for choosing the right valve for your application. Whether you're working in plumbing, oil and gas, or water treatment, selecting the appropriate valve type can significantly impact efficiency and performance. In this article, we will explore the differences between ball valves and gate valves, their applications, and key considerations when selecting them.

Both ball valves and gate valves serve the primary function of regulating the flow of fluids, but they differ in design, operation, and suitability for specific applications. Understanding these differences will help you make informed decisions when selecting the right valve for your system. This article provides an in-depth analysis of the two valve types, their advantages, disadvantages, and maintenance requirements.

By the end of this guide, you will have a clear understanding of the difference between ball valve and gate valve, empowering you to select the most suitable option for your needs. Let's dive in!

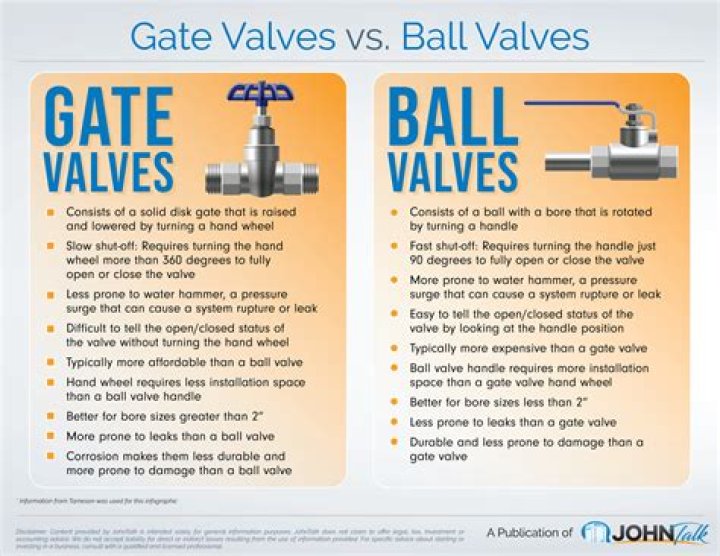

Introduction to Ball Valve and Gate Valve

Valves are integral components of fluid control systems, and two of the most commonly used types are ball valves and gate valves. Both valve types are designed to regulate, start, or stop fluid flow, but they differ significantly in design, functionality, and application. The difference between ball valve and gate valve lies in their internal mechanisms and the way they control fluid flow.

Ball valves use a spherical disc with a hole in the middle to control fluid flow. When the hole is aligned with the flow direction, the valve is open, allowing fluid to pass through. Conversely, when the ball is rotated 90 degrees, the valve is closed, stopping the flow. Gate valves, on the other hand, use a sliding gate or wedge to control flow. The gate moves up or down to either allow or block fluid passage.

Understanding these fundamental differences is crucial for selecting the appropriate valve type for specific applications. Below, we will delve deeper into the design, operation, and applications of both ball valves and gate valves.

Biological Differences Between Ball Valve and Gate Valve

Key Design Features

While ball valves and gate valves share the common goal of controlling fluid flow, their internal designs differ significantly. Ball valves rely on a rotating ball with a bored passage to control flow, whereas gate valves use a sliding gate mechanism. These differences affect their performance, durability, and suitability for various applications.

Ball Valve Features:

• Compact design with fewer moving parts
• Quarter-turn operation for quick opening and closing
• Suitable for high-pressure and high-temperature applications

Gate Valve Features:

• Linear motion for opening and closing
• Designed for full-on or full-off flow control
• Less suitable for throttling applications

Design and Operation of Ball and Gate Valves

The design and operation of ball valves and gate valves are key factors in determining their performance. Ball valves operate through a quarter-turn mechanism, making them ideal for quick shutoff applications. Gate valves, on the other hand, require multiple turns to open or close, making them better suited for applications where frequent operation is not required.

Ball valves are typically made from materials such as stainless steel, brass, or plastic, providing excellent corrosion resistance and durability. Gate valves, meanwhile, are often constructed from cast iron, bronze, or stainless steel, offering robustness and longevity in demanding environments.

Applications of Ball and Gate Valves

Ball Valve Applications

Ball valves are widely used in industries where quick shutoff and reliable performance are essential. Some common applications include:

• Oil and gas pipelines
• Chemical processing plants
• Water treatment facilities
• Residential plumbing systems

Gate Valve Applications

Gate valves are preferred for applications requiring full flow control and minimal pressure drop. They are commonly used in:

• Power generation plants
• Petroleum refineries
• Fire protection systems
• Municipal water supply networks

Advantages and Disadvantages

Advantages of Ball Valves

• Quick and reliable shutoff
• Low maintenance requirements
• Compact and lightweight design

Disadvantages of Ball Valves

• Not suitable for throttling applications
• May require regular lubrication in high-pressure environments

Advantages of Gate Valves

• Excellent for full-on or full-off flow control
• Minimal pressure drop when fully open
• Durable and long-lasting in high-pressure applications

Disadvantages of Gate Valves

• Slower operation compared to ball valves
• Bulkier and heavier design
• More prone to wear and tear in frequent operation

Maintenance and Longevity

Regular maintenance is crucial for ensuring the longevity and optimal performance of both ball valves and gate valves. Ball valves generally require less maintenance due to their simpler design and fewer moving parts. However, they may need periodic lubrication, especially in high-pressure applications.

Gate valves, on the other hand, require more frequent maintenance due to their complex design and tendency to wear over time. Inspecting the stem, gate, and seat for signs of corrosion or damage is essential for preventing leaks and ensuring reliable operation.

Cost Comparison

When comparing the cost of ball valves and gate valves, several factors come into play, including size, material, and application. Generally, ball valves are more cost-effective for smaller applications, while gate valves are often preferred for larger, industrial-scale projects.

According to industry data, ball valves typically cost 10-20% less than gate valves for equivalent sizes and materials. However, this difference can vary depending on the manufacturer and specific application requirements.

Industry Standards and Certifications

Both ball valves and gate valves must comply with industry standards and certifications to ensure safety and reliability. Common standards include:

• ASME B16.34 for pressure ratings and testing
• API 6D for pipeline and piping applications
• ISO 5208 for valve testing and certification

Choosing valves that meet these standards ensures compliance with regulatory requirements and guarantees high-quality performance.

Troubleshooting Common Issues

Despite their robust design, ball valves and gate valves can experience issues over time. Common problems include:

• Leakage due to worn seals or gaskets
• Difficulty in operation due to corrosion or debris
• Stem or actuator failure

Regular inspection and maintenance can help prevent these issues and extend the lifespan of your valves.

Conclusion and Final Thoughts

In conclusion, understanding the difference between ball valve and gate valve is essential for selecting the right valve for your application. Ball valves excel in quick shutoff and compact design, while gate valves are ideal for full flow control and minimal pressure drop. Both valve types have their advantages and disadvantages, and the choice ultimately depends on your specific needs and requirements.
