When it comes to industrial applications, selecting the right valve type is crucial for ensuring efficient and safe fluid control. Whether you're working on plumbing systems, oil and gas pipelines, or chemical processing plants, understanding the differences between ball valves and gate valves is essential. Both valve types serve the same fundamental purpose—controlling the flow of fluids—but they differ significantly in design, functionality, and applications.

This article aims to provide a detailed comparison of ball valves and gate valves, helping you make an informed decision based on your specific needs. By the end of this guide, you'll have a clear understanding of the advantages and disadvantages of each valve type, enabling you to choose the best option for your project.

Whether you're a professional engineer, a DIY enthusiast, or someone looking to upgrade their plumbing system, this comprehensive guide will equip you with the knowledge to make the right choice. Let's dive in and explore the world of ball valves and gate valves!

Introduction to Valves

Valves are mechanical devices used to control the flow of fluids, gases, or slurries in various systems. They play a critical role in industries such as oil and gas, water treatment, chemical processing, and HVAC systems. The two most common types of valves are ball valves and gate valves. Each has its own unique characteristics and applications, making it important to understand their differences before making a selection.

What Are Ball Valves?

Ball valves are quarter-turn rotary valves that use a spherical disc to control the flow of fluids. The ball has a bore through the center, which aligns with the flow path when the valve is open. When the valve is closed, the bore is perpendicular to the flow path, effectively blocking the fluid passage.

Key Features of Ball Valves

• Quick and easy operation due to quarter-turn mechanism
• Available in various sizes and materials
• Excellent sealing capabilities
• Suitable for high-pressure and high-temperature applications

What Are Gate Valves?

Gate valves, also known as sluice valves, use a gate or wedge to control the flow of fluids. The gate moves perpendicular to the flow path, either opening or closing the passage. Gate valves are typically used for isolation purposes and are not designed for throttling.

Key Features of Gate Valves

• Designed for fully open or fully closed positions
• Minimal pressure drop when fully open
• Suitable for larger pipe diameters
• Generally slower to operate compared to ball valves

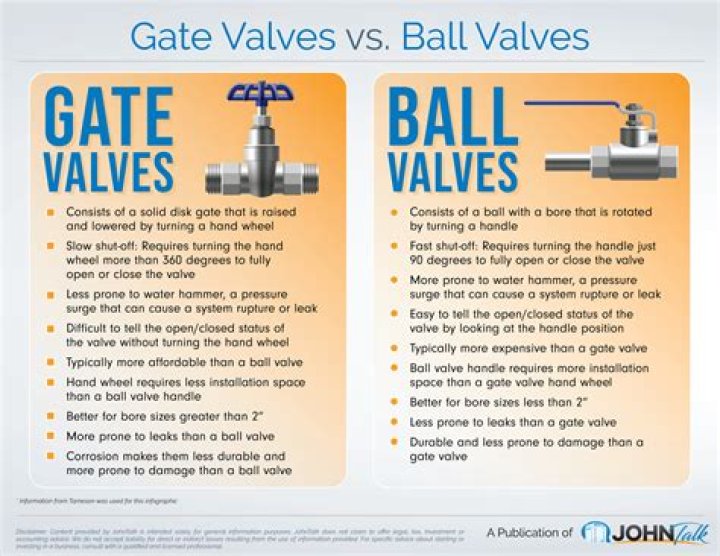

Key Differences Between Ball and Gate Valves

While both ball valves and gate valves serve the purpose of controlling fluid flow, they differ significantly in design, functionality, and applications. Below are some of the key differences:

• Operation: Ball valves use a quarter-turn mechanism, while gate valves require multiple turns to open or close.
• Sealing: Ball valves provide a tighter seal, making them ideal for applications requiring zero leakage.
• Flow Control: Gate valves are better suited for applications where full flow is required, whereas ball valves can be used for throttling in certain cases.
• Size: Gate valves are typically used for larger pipe sizes, while ball valves are more compact and suitable for smaller applications.

Applications of Ball Valves

Ball valves are versatile and find applications in a wide range of industries. Some of the common applications include:

• Pipeline systems in oil and gas industries
• Chemical processing plants
• Water distribution systems
• Automotive and HVAC systems

Applications of Gate Valves

Gate valves are primarily used for isolation purposes and are ideal for applications where full flow is required. Common applications include:

• Water and wastewater treatment plants
• Pipeline systems in power plants
• Marine and offshore industries
• Large-scale industrial processes

Advantages and Disadvantages

Advantages of Ball Valves

• Quick and easy operation
• Excellent sealing capabilities
• Suitable for high-pressure and high-temperature applications
• Compact design

Disadvantages of Ball Valves

• May suffer from wear and tear over time
• Not ideal for large pipe diameters
• Can be more expensive than gate valves

Advantages of Gate Valves

• Minimal pressure drop when fully open
• Suitable for large pipe diameters
• Relatively low cost

Disadvantages of Gate Valves

• Slower to operate
• Prone to leakage if not properly maintained
• Not suitable for throttling applications

Maintenance and Lifespan

Proper maintenance is crucial for extending the lifespan of both ball valves and gate valves. Regular inspections, cleaning, and lubrication can help prevent issues such as leakage and corrosion. Ball valves generally have a longer lifespan due to their robust design, while gate valves may require more frequent maintenance to ensure optimal performance.

Cost Comparison

Cost is an important factor when selecting a valve type. Ball valves tend to be more expensive than gate valves, especially for larger sizes. However, their durability and reliability often justify the higher upfront cost. Gate valves, on the other hand, are more cost-effective for larger pipe diameters and applications where full flow is required.

Choosing the Right Valve

Selecting the right valve depends on several factors, including the application, fluid type, pressure, temperature, and budget. For applications requiring quick operation and tight sealing, ball valves are the preferred choice. On the other hand, gate valves are ideal for applications where full flow is essential and cost is a consideration.

Final Thoughts

Both ball valves and gate valves have their own unique advantages and limitations. Understanding their differences and applications is key to making the right choice for your project. Whether you're working on a small plumbing system or a large industrial process, selecting the appropriate valve type will ensure efficient and reliable fluid control.
