When it comes to industrial applications, choosing between a ball valve and a gate valve is an essential decision that impacts system performance, cost, and maintenance. Both valves serve the primary purpose of controlling fluid flow, but their design, functionality, and applications differ significantly. Understanding these differences is crucial for engineers, facility managers, and anyone involved in fluid systems.

Ball valves and gate valves are two of the most commonly used valves in various industries, including oil and gas, water treatment, HVAC, and manufacturing. Each valve type has unique characteristics that make it suitable for specific applications. In this article, we will explore the features, advantages, disadvantages, and applications of both ball valves and gate valves.

By the end of this guide, you will have a clear understanding of the differences between ball valves and gate valves, enabling you to make an informed decision based on your specific needs. Let's dive into the details and uncover which valve type is right for your project.

Introduction to Ball Valve and Gate Valve

Overview of Industrial Valves

In industrial settings, valves play a critical role in controlling the flow of fluids, gases, and other materials. Among the many types of valves available, ball valves and gate valves are two of the most widely used. Understanding their functionality and applications is essential for optimizing system performance and efficiency.

What is a Ball Valve?

Design and Operation

A ball valve is a type of quarter-turn rotational motion valve that uses a hollow, perforated ball to control flow. When the ball's hole is in line with the flow, the valve is open, allowing fluid to pass through. Rotating the ball 90 degrees closes the valve, effectively stopping the flow. Ball valves are known for their reliability, tight shut-off capabilities, and ease of operation.

Key Features:

• Quarter-turn operation for quick on/off control
• Available in various materials, including stainless steel, brass, and PVC
• Excellent sealing properties

What is a Gate Valve?

Design and Operation

A gate valve, also known as a slab valve, uses a gate or wedge to control flow. The gate moves perpendicular to the flow, either fully open or fully closed. Gate valves are designed for isolation purposes and are not suitable for throttling applications. They provide a straight-through flow path, minimizing turbulence and pressure drop.

Key Features:

• Linear motion operation for precise control
• Available in rising stem and non-rising stem designs
• Capable of handling high-pressure and high-temperature applications

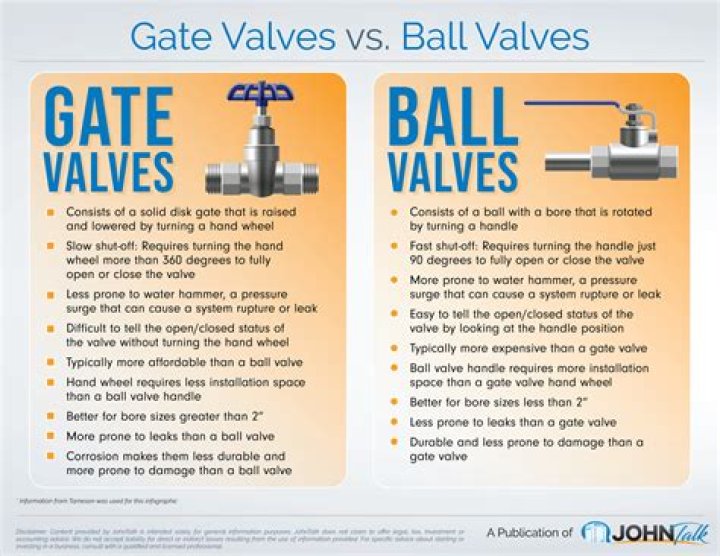

Key Differences Between Ball Valve and Gate Valve

Functionality and Performance

While both ball valves and gate valves control fluid flow, their design and operation result in distinct differences. Ball valves excel in quick shut-off applications, while gate valves are better suited for isolation purposes. Additionally, ball valves are more compact and lighter, making them ideal for space-constrained environments.

Comparison Table:

Applications of Ball Valves

Industries and Use Cases

Ball valves are widely used in industries where quick shut-off and reliable performance are critical. Some common applications include:

• Oil and gas pipelines
• Water distribution systems
• Chemical processing plants
• Food and beverage production

According to a report by Grand View Research, the global ball valve market is projected to grow at a CAGR of 4.5% from 2023 to 2030, driven by increasing demand in the oil and gas sector.

Applications of Gate Valves

Industries and Use Cases

Gate valves are commonly used in applications requiring full open/closed functionality. Some typical industries include:

• Power generation
• Petrochemical plants
• Water treatment facilities
• Marine and offshore operations

A study published in the Journal of Fluid Engineering highlights the effectiveness of gate valves in high-pressure and high-temperature environments, making them indispensable in certain industrial processes.

Advantages and Disadvantages

Pros and Cons of Each Valve Type

Both ball valves and gate valves have their own set of advantages and disadvantages. Below is a summary of their pros and cons:

Ball Valve Advantages:

• Quick and easy operation
• Excellent sealing capabilities
• Compact design

Ball Valve Disadvantages:

• Not suitable for throttling
• May suffer from wear over time

Gate Valve Advantages:

• Capable of handling high-pressure and high-temperature applications
• Provides a straight-through flow path

Gate Valve Disadvantages:

• Slower operation compared to ball valves
• Bulkier and heavier

Maintenance and Longevity

Ensuring Long-Term Performance

Regular maintenance is essential for ensuring the longevity and reliability of both ball valves and gate valves. Factors such as material selection, operating conditions, and proper installation significantly impact their lifespan.

Maintenance Tips:

• Inspect valves periodically for signs of wear or leakage
• Lubricate moving parts as recommended by the manufacturer
• Follow proper shutdown and startup procedures

Cost Considerations

Investing in the Right Valve

Cost is an important factor when choosing between ball valves and gate valves. While ball valves are generally more affordable upfront, gate valves may offer better value in the long run for certain applications. It's essential to consider the total cost of ownership, including installation, maintenance, and replacement costs.

Selecting the Right Valve for Your Application

Factors to Consider

Selecting the right valve depends on several factors, including:

• Application requirements
• Fluid type and properties
• Operating conditions
• Budget constraints

Consulting with a qualified engineer or valve expert can help ensure the best choice for your specific needs.

Conclusion and Final Thoughts

In conclusion, both ball valves and gate valves have their unique strengths and limitations. Ball valves are ideal for quick shut-off applications, while gate valves are better suited for isolation purposes. Understanding the differences between these two valve types is crucial for making an informed decision.
